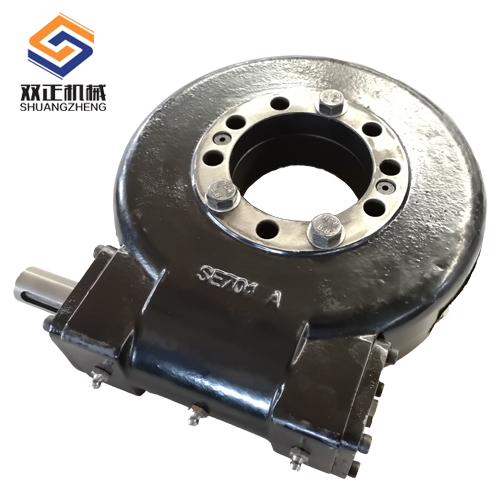

Small size Slewing Drive SE7  with hydraulic motor For Foundation Machine

Jiangsu shuangzheng Machinery Co.,ltd is a professional manufacturer and exporter of slewing bearing/slewing ring/slew circle, slewing drives/slew drive, which are mainly applied in port machinery, mining machinery, industrial robotics, welding machinery, construction vehicles, modular vehicles, single or dual axis solar tracking systems, and small wind power systems etc.

There are mainly SE series and WEA series to meet both regular and precise tracking requirement in PV.CPV and solar thermal power tracking fields,please find detailed specifications in the form.

Technical information

Rated Output Torque:1.5kN.m
Tilting Moment Torque:13.5kN.m
Static Axial Load:133kN
Static Radial Load:53kN
Dynamic Axial Load:32kN
Dynamic Radial Load:28kN
Holding Torque:10.4kN.m
Gear Ratio:73:1
Tracking Precision:≤0.20
Self-locking Gears:Yes
Weight:23kg
